Packaged Unit Pricing Breakdown From 2 Ton to 5 Ton Systems

4 Ton Heat Pump Package Unit Installed Price and Cost Factors

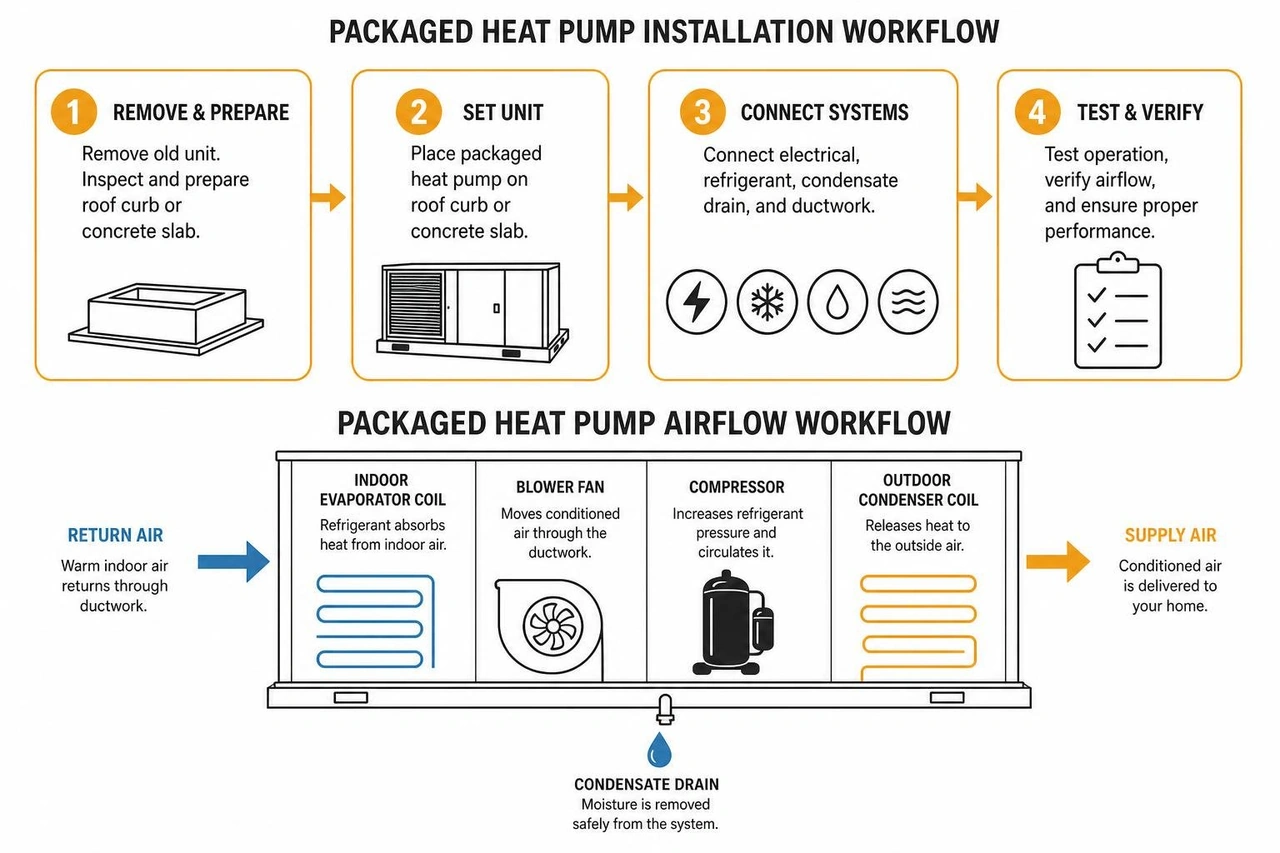

The typical 4 ton heat pump package unit installed price ranges from $6,500 to $12,500, with standard equipment costs accounting for $2,600 to $5,200 and installation labor, permits, and duct transitions making up the balance. A packaged heat pump combines everything into a single cabinet: the compressor, outdoor condenser coil, indoor evaporator coil, and blower fan. Because all critical components sit outside on a concrete slab or roof curb, installation logistics differ significantly from a traditional split system.

Baseline 4 Ton Heat Pump Package Unit Installed Price Expectations

Under standard replacement conditions, equipment alone accounts for $2,600 to $5,200 of the total project. Professional installation labor, removal and disposal of your old system, standard electrical hookups, and basic curb or transition fittings make up the remaining balance, bringing the typical turnkey price to between $6,500 and $12,500.

A 4-ton system delivers roughly 48,000 BTU per hour of cooling and heating capacity. The entry-level bracket generally covers single-stage units designed for direct slide-in replacements where existing ductwork and electrical wiring are in excellent condition. Mid-range and premium configurations include two-stage or inverter-driven compressors that deliver higher comfort and quieter operation.

The table below outlines typical capacity tiers, home sizes, and installed price ranges:

Efficiency Ratings and the 4 Ton Heat Pump Package Unit Installed Price

Energy efficiency plays a massive role in both the initial investment and your monthly utility bills. Under modern testing standards, heat pumps are rated by Seasonal Energy Efficiency Ratio 2 (SEER2) for cooling and Heating Seasonal Performance Factor 2 (HSPF2) for heating.

Entry-level systems start around 13.4 to 14.3 SEER2. Upgrading to a 15.2 to 16.0 SEER2 package unit typically adds $800 to $1,800 to the upfront price, but it can lower annual heating and cooling expenses by 15% to 25%. Premium units rated at 17.0 to 19.0 SEER2 utilize variable-speed inverter compressors. These systems constantly adjust output in tiny increments, maintaining consistent indoor temperatures and superior humidity removal during humid summers.

Choosing high efficiency heating and air conditioning systems is often the smartest move for long-term utility savings. Homeowners looking to lower their long-term operational costs can review our best energy efficient HVAC guide to compare efficiency tiers and operational returns.

Packaged Unit Sizing and Pricing Across 2 Ton to 5 Ton Systems

Selecting the right capacity requires a precise ACCA Manual J load calculation. Sizing is not just a guess based on total square footage. We analyze window types, insulation values, roof pitch, duct design, and regional climate conditions across Pittsburgh and surrounding areas. For broader context on overall project expenses across various configurations, see our average HVAC install cost guide 2026.

2 Ton to 3.5 Ton Package Units for Small to Mid-Sized Homes

Packaged heat pumps in the 2.0 to 3.5-ton range (24,000 to 42,000 BTU) are engineered for smaller ranch homes, townhouses, and manufactured properties ranging from 900 to 2,200 square feet.

• 2.0 to 2.5 Ton ($4,800 - $8,800 installed): Ideal for smaller compact footprints or highly insulated newer constructions. These systems require minimal duct adjustments and smaller electrical breakers (typically 25 to 35 amps).
• 3.0 to 3.5 Ton ($5,800 - $10,800 installed): The workhorse size for standard 3-bedroom single-story homes. These units balance manageable airflow static pressure with steady heating output during shoulder seasons.

4 Ton to 5 Ton Systems for Larger Living Spaces

Larger multi-story layouts and expansive ranch homes spanning 1,800 to 3,200 square feet demand 4.0 to 5.0 tons of capacity (48,000 to 60,000 BTU) to maintain whole-home comfort.

• 4.0 Ton ($6,500 - $12,500 installed): Delivers up to 1,600 CFM (cubic feet per minute) of conditioned air. It requires properly sized return air grilles and robust supply plenums to prevent high static pressure and blower strain.
• 5.0 Ton ($7,800 - $14,500 installed): The largest standard residential size available, moving roughly 2,000 CFM of air. A 5-ton unit often requires dedicated 50 to 60-amp electrical circuits and supplemental electric heat strip kits (ranging from 10kW to 20kW) to handle extreme winter sub-zero temperatures.

Additional Project Expenses and Installation Variables

No two installations are completely identical. While an equipment swap on an existing, level concrete pad with compatible ducting sits at the baseline price, specific site challenges can add to the final estimate. For an in-depth breakdown of standard central air installation variables, check our central air installation cost guide.

Rooftop Curb Adapters and Ground Slab Preparation

Where and how the packaged unit sits on your property directly affects labor and equipment costs:

• Ground-Level Installations: If your existing unit sits on the ground, the crew must verify that the pad is level, structurally sound, and raised above local snow accumulation levels. Pouring a new concrete pad or setting a heavy-duty composite equipment pad typically costs $200 to $600.
• Rooftop Curb Adapters: Packaged units installed on flat roofs sit on a raised curb. When replacing an older system with a modern unit that has different cabinet dimensions, custom curb adapters ($300 to $1,200) are required to ensure a watertight seal.
• Crane and Rigging Services: Rooftop replacements require a mobile crane service to hoist the old equipment down and lift the new unit into position. Depending on boom reach, power line proximity, and neighborhood street permits, crane services add $400 to $1,500 to the job.

Ductwork Modifications and Electrical Service Hookups

Packaged systems move large volumes of air directly through exterior wall or roof penetrations. If the supply and return trunk lines are undersized or deteriorated, modifications are necessary to protect the new compressor.

Common supplemental expenses include:

• Ductwork Transitions and Sealing: Fabricating custom sheet metal transitions between the unit and supply/return drops ($500 to $2,000).
• Electrical Service Upgrades: Upgrading an older 100-amp service panel to a 200-amp panel to accommodate all-electric heat strips ($1,500 to $3,000).
• Disconnect and Whip Replacement: Installing a new exterior weatherproof disconnect box and electrical whip ($200 to $450).
• Smart Thermostat Integration: Upgrading control wiring and installing a multi-stage programmable thermostat ($150 to $450).
• Municipal Permits and Inspections: Local building code compliance and safety sign-offs ($75 to $400).

Frequently Asked Questions About Packaged Heat Pumps

How does a packaged heat pump differ from a split system?

A split system divides its components between an outdoor condensing unit and an indoor air handler or furnace located in a basement, attic, or utility closet. Refrigerant line sets connect the two halves.

A packaged heat pump combines all mechanical parts into a single exterior cabinet. Conditioned air is ducted directly into the home through exterior wall or roof openings. This design frees up interior closet or basement floor space and eliminates the need for indoor refrigerant piping.

How long does a typical packaged unit installation take?

A straightforward ground-level package unit replacement typically takes our two-person crew one full working day (roughly 8 to 10 hours). If your project requires a crane lift, custom sheet metal duct fabrication, or electrical panel upgrades, the installation process usually spans 1 to 2 days.

What rebates are available for energy efficient heat pump packages?

In 2026, homeowners can take advantage of various local electric utility rebates and state energy efficiency programs for high-efficiency heat pump systems. Qualifying ENERGY STAR certified units with higher SEER2 and HSPF2 ratings often qualify for cash-back incentives directly through your electric service provider. We provide our customers with complete documentation and AHRI certificate numbers to streamline the rebate application process.

Conclusion

A 4-ton heat pump package unit provides dependable whole-home heating and cooling in a self-contained outdoor footprint. While the typical installed price falls between $6,500 and $12,500, securing the best performance and value depends on thorough sizing, proper duct design, and meticulous installation.
