Why the Right Air Conditioning System Makes All the Difference

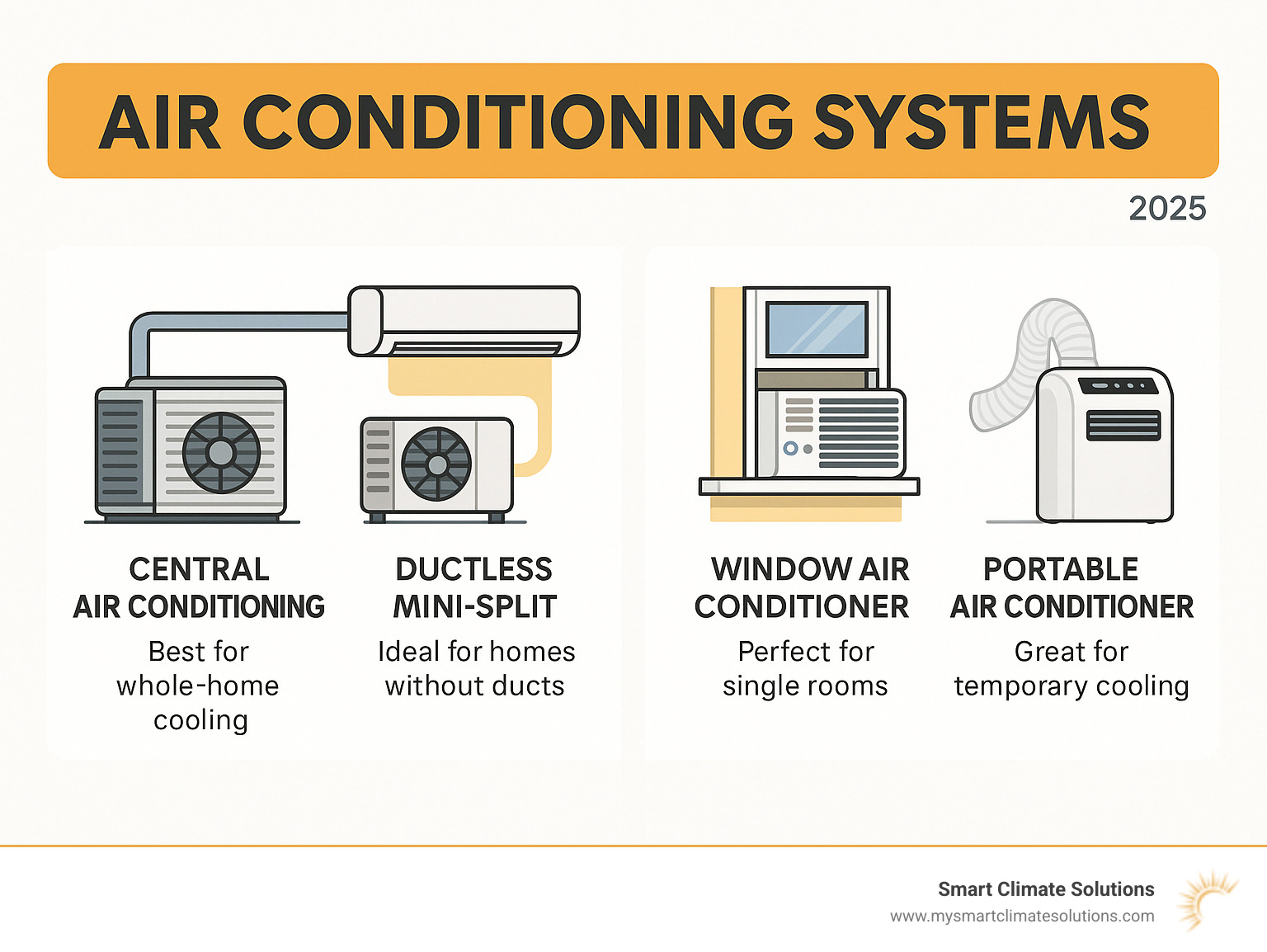

Air conditioning systems come in several main types, each designed for different cooling needs and home layouts:
- Central Air Conditioning: Best for whole-home cooling with existing ductwork.
- Ductless Mini-Split Systems: Ideal for homes without ducts or for creating cooling zones.
- Window Air Conditioners: Perfect for single rooms and budget-conscious cooling.
- Portable Air Conditioners: Great for temporary cooling and rental properties.
Since Willis Carrier invented the first modern air conditioning system in 1902, the technology has transformed how we live. Today, Pittsburgh homeowners must choose from multiple cooling options, each with distinct advantages for our region's humid summers.
The best air conditioner is one you don't have to think about-it quietly maintains your comfort while running efficiently. But with central, ductless, window, and portable options available, how do you know which is right for your home, budget, and cooling needs?
Whether you're replacing an old system or installing your first air conditioner, understanding the differences is key. Each type works on the same principle of heat transfer, but their installation, efficiency, and costs vary significantly.
I'm Bill Scott, and with over 15 years of HVAC experience serving Pittsburgh and Southwestern PA, I've helped thousands of homeowners choose and maintain the right air conditioning systems. This guide will explore each type to help you find the perfect fit for your home.
How Air Conditioners Create Cool Comfort
Your air conditioning system does not create cold air. Instead, it moves heat, pulling warmth from inside your home and transferring it outdoors. This heat transfer process keeps your Pittsburgh home comfortable when summer temperatures climb.
Think of the refrigerant as a heat courier. It absorbs heat from your living room, carries it outside, releases it, and then returns for more. This constant cycle turns a stuffy house into a cool retreat.
As your AC pulls warm, humid air across its cold coils, moisture condenses out of the air, like water droplets on a glass of iced tea. This dehumidification is critical for comfort, making 75 degrees feel pleasant instead of muggy.
Your air conditioning system also improves indoor air quality. As air circulates, it passes through filters that trap dust, pollen, and pet dander.
The Core Components of an AC
Every air conditioning system relies on the same basic components working together.
The compressor, located in the outdoor unit, is the heart of the system. It pressurizes the refrigerant, preparing it to release heat outside.
The condenser coil, also outdoors, works with a fan to dissipate the heat absorbed from your home into the outside air.
Inside your home, the evaporator coil gets ice cold. As warm indoor air passes over it, heat is transferred from the air to the refrigerant, cooling your home.
The expansion valve lowers the refrigerant's pressure and temperature, making it ready to absorb more heat in the evaporator coil.
The refrigerant changes between liquid and gas states to absorb and release heat, moving it from inside to outside.
The blower fan in your indoor unit circulates cooled air through your ductwork and into your rooms.
If you live in the Pittsburgh area, our technicians can walk you through these parts during a tune-up or estimate.

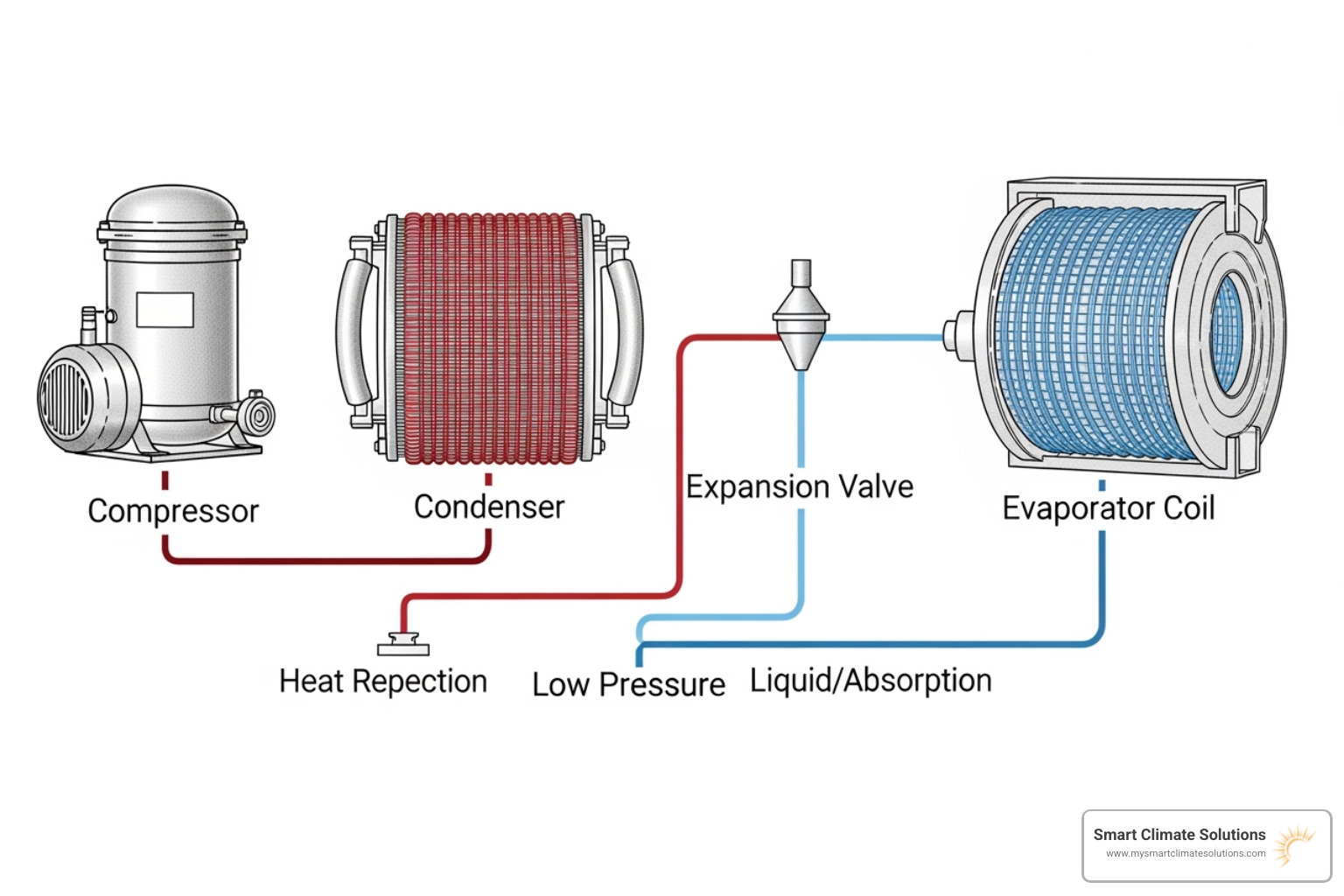

The Refrigeration Cycle Step-by-Step
The refrigeration cycle is a continuous loop that keeps your home cool.
- Cool, low-pressure refrigerant gas enters the compressor. The compressor squeezes this gas, making it hot and high pressure.
- This hot gas flows to the outdoor condenser coil. A fan blows outdoor air across the coil, causing the refrigerant to cool down, release its heat, and condense into a liquid.
- The high-pressure liquid refrigerant travels to the expansion valve, which causes a rapid drop in pressure and temperature.
- This cold, low-pressure liquid flows into the indoor evaporator coil. As warm indoor air is blown across the coil, the refrigerant absorbs the heat and evaporates back into a gas. The cooled air is then circulated through your home.
In Pittsburgh's humid summers, steady heat removal and dehumidification are what keep your home comfortable.
A Guide to the Main Types of Air Conditioning Systems
Choosing the right air conditioning system for your home in Pittsburgh, South Hills, or Weirton, WV, depends on your home's layout, ductwork, budget, and cooling needs. The main options are either "split" or "packaged" systems, designed for whole-home or single-room cooling.
Central Air Conditioning
Central air conditioning systems are the most common choice for whole-home cooling, especially for properties with existing ductwork.
- How it works: A central AC is a "split system" with two main units: an outdoor unit (condenser/compressor) and an indoor unit (evaporator coil/air handler). Refrigerant lines connect them. The system draws warm air through return ducts, cools it by passing it over the evaporator coil, and distributes it via supply ducts.
- Pros: Provides consistent, whole-home cooling and dehumidification; operates quietly as most components are hidden; energy-efficient for larger homes; improves indoor air quality with filtration.
- Cons: High initial installation cost; requires ductwork (or a costly installation to add it); can be inefficient if ducts leak or the system is improperly sized.
- Best for: Single-family homes in areas like St. Clairsville, OH, and Steubenville, OH, with existing forced-air heating systems.
- For more on what to expect for installation, visit Central AC Installation Cost.
Ductless Mini-Split Systems
Ductless mini-splits are an excellent alternative for homes without ductwork or for rooms needing targeted cooling.
- How they work: An outdoor compressor connects to one or more indoor air-handling units mounted on a wall or ceiling. Each indoor unit cools a specific room or "zone," allowing for independent temperature control.
- Pros: No ducts required, ideal for older homes or additions; highly energy-efficient due to zoned cooling and inverter technology; flexible installation; many models offer both heating and cooling.
- Cons: Higher upfront cost per ton than central AC; indoor units are visible; multiple units may be needed for whole-home coverage.
- Best for: Homes without ductwork, room additions, or homeowners wanting zoned temperature control.
- Explore more about these versatile systems at Whole Home Ductless HVAC.
Window Air Conditioners
Window units are a simple and affordable solution for cooling single rooms.
- How it works: These self-contained units house all components in one box. They install in a window, releasing heat outside while blowing cool air inside.
- Pros: Low initial cost; easy for a DIYer to install; effective for single rooms or small apartments.
- Cons: Can be noisy; blocks window view and light; less efficient than central or mini-split systems; often requires removal and storage in winter.
- Best for: Renters, small rooms, or anyone on a tight budget needing to cool a single space.
Portable Air Conditioners
Portable AC units offer mobility without permanent installation.
- How it works: These freestanding units on wheels can be moved between rooms. They use an exhaust hose vented through a window to expel hot air.
- Pros: Highly mobile and easy to set up; ideal for temporary cooling or where window units are not an option.
- Cons: Generally the least energy-efficient type; can be noisy and take up floor space; the exhaust hose can be cumbersome.
- Best for: Temporary cooling of small spaces (under 500 sq. ft.) or rentals with strict window unit rules.
Comparison of AC System Types
| System Type | Best For | Average Cost (Installation) | Efficiency (SEER2) | Installation Complexity |
|---|---|---|---|---|
| Central Air | Whole-home cooling, existing ductwork | High | High | High (Professional) |
| Ductless Mini-Split | Zoned cooling, no ducts, additions | Moderate to High | Very High | Moderate (Professional) |
| Window AC | Single rooms, budget-friendly, renters | Low | Low to Moderate | Low (DIY) |
| Portable AC | Temporary cooling, small spaces, mobility | Low | Low | Very Low (DIY) |
Choosing the Right AC: Sizing, Efficiency, and Smart Features
Selecting the right air conditioning system involves more than picking a type. Proper sizing, energy efficiency, and smart controls matter for comfort and cost.
Sizing Your Air Conditioner Correctly
Proper sizing is crucial for an air conditioning system. Cooling capacity is measured in BTUs (British Thermal Units), where one ton of cooling equals 12,000 BTUs per hour.
- Oversized units cool too quickly and do not dehumidify well. This can leave you feeling clammy. Frequent cycling also increases wear and energy use.
- Undersized units run constantly without reaching the set temperature, raising energy bills and reducing comfort.
A professional load calculation considers insulation, windows, ceiling height, local climate, and internal heat gains. In the Pittsburgh area, ask for a Manual J calculation before you buy. Our team sizes systems for Pittsburgh's humid summers and varied home styles.
Understanding Efficiency: What is SEER2?
When shopping for air conditioning systems, you will see a SEER2 rating. SEER2 (Seasonal Energy Efficiency Ratio 2) measures how efficiently a system cools over a season. It is like an MPG rating for your AC.
A higher SEER2 number means better efficiency. While high-efficiency units cost more upfront, they can lower electric bills for years. Look for ENERGY STAR models to save more.
We help homeowners choose from Energy Efficient Air Conditioning Systems that balance performance and long-term savings.
Smart Thermostats and Controls
Your thermostat is the brain of your air conditioning system.
- Remote control: Adjust temperatures from anywhere using a phone app.
- Learning schedules: Some models learn your routine to optimize comfort and savings.
- Geofencing: Uses your phone location to adjust temps when you leave and cool the house before you return.
A smart thermostat can reduce cooling costs by 10 to 15 percent while keeping Pittsburgh homes comfortable.
Keeping Your System Running: Maintenance and Longevity
An air conditioning system is like a car-it needs regular maintenance to run efficiently and last as long as possible. With proper care, a central air unit can provide comfort for 15 to 20 years. Regular upkeep prevents emergency repairs, keeps the system running at peak performance, and saves you money on utility bills by ensuring high efficiency.
AC maintenance combines simple DIY tasks with professional service to ensure everything runs safely and effectively. Let's explore what you can do and when to call the pros.
DIY Maintenance Tasks for Homeowners
You can perform several simple tasks to keep your air conditioning system in good shape.
- Check and Replace Air Filters: This is the most important task. A dirty filter restricts airflow, forcing your system to work harder and reducing efficiency. Check your filter monthly and replace it every 1-3 months, or more often if you have pets or allergies.
- Clean Around the Outdoor Unit: Your condenser needs clear space to dissipate heat. Remove leaves, grass clippings, and debris. Ensure at least two feet of clearance around the unit by trimming back bushes and plants.
- Check Condensate Drain Lines: Your AC removes humidity, which drains away. If this line clogs, water can back up into your home. You can often clear minor clogs by flushing the line with a mixture of vinegar and water.
For more detailed guidance, see our guide on AC Maintenance.
Why Professional Tune-Ups Are Essential
While DIY tasks are helpful, they don't replace a professional tune-up. We recommend scheduling an annual inspection each spring to prepare your air conditioning system for the cooling season.
- Improved Efficiency and Lifespan: Our technicians can spot and fix minor issues before they become major repairs, extending your system's life and ensuring it runs at peak efficiency.
- Thorough Coil Cleaning: We have the tools to safely clean both the indoor evaporator and outdoor condenser coils. Clean coils are essential for proper heat transfer.
- Refrigerant Level Checks: Incorrect refrigerant levels can severely damage your system. We ensure the charge is correct and check for leaks.
- Electrical Safety Inspections: Loose electrical connections are a safety hazard and reduce performance. Our technicians inspect and tighten all connections to ensure safe, reliable operation.
Learn more about what's included in our HVAC Preventative Maintenance Program Guide. Investing in regular professional maintenance pays for itself through lower energy bills, fewer repairs, and a longer system lifespan.
Frequently Asked Questions about Air Conditioning Systems
Over two decades of serving Pittsburgh and surrounding communities, I've answered many questions about air conditioning systems. Here are the answers to some of the most common ones.
How long do most air conditioning systems last?
Most central air conditioning systems last 15 to 20 years. However, longevity depends heavily on two factors: quality installation and regular maintenance. A system that is properly installed and receives annual professional tune-ups can often last well beyond 20 years. Neglecting maintenance, like failing to change filters, can shorten its life significantly.
Our Pittsburgh climate is less demanding than hotter regions, but the humidity can still be tough on components. Consistent care is the secret to a long-lasting AC.
Do air conditioners use air from outside?
No, this is a common misconception. Your air conditioning system does not pull in outside air to cool your home. Instead, it recirculates the air already inside your house.
Warm indoor air is drawn into the system, cooled, and then pushed back into your rooms. The outdoor unit's job is to release the heat that was absorbed from your indoor air. It uses outside air to cool the condenser coils, but that air never enters your home. This process is more efficient and helps maintain better indoor air quality.
Is it cheaper to leave the air conditioner on all day?
For energy savings, it's best not to turn your AC off completely when you leave. A system has to work much harder and use more energy to cool a very hot house than to maintain a consistent temperature.
The most efficient strategy is to set your thermostat 7 to 10 degrees higher when you are away. For example, if you prefer 72 degrees when home, set it to 79 or 80 when you leave. This reduces runtime while preventing the house from getting too hot.
Smart thermostats make this effortless. They can automatically adjust the temperature based on your schedule or phone location, often saving homeowners 10-15% on cooling costs without sacrificing comfort.
Conclusion
Choosing the right air conditioning system is a major decision that impacts your comfort for years. We've covered how ACs work, explored the different types available, and highlighted the importance of proper sizing, efficiency, and maintenance.
The perfect system for your neighbor might not be right for you. Whether you need the whole-home coverage of central air or the zoned flexibility of a ductless mini-split, the choice is personal. For those of us in the Pittsburgh area, a system's ability to handle high humidity is just as important as its cooling power.
Proper sizing and a high SEER2 rating, paired with a smart thermostat, will keep you comfortable while saving you money on energy bills. Furthermore, consistent maintenance is the key to protecting your investment and ensuring your system lasts for years to come.
At Smart Climate Solutions, we understand that every home and family has unique needs. With over 15 years of experience serving Western Pennsylvania and the Ohio Valley, our certified technicians are ready to help you steer these choices.
Don't spend another summer uncomfortable or worried about high energy bills. We're here to help you find the perfect air conditioning system for your home and budget.
